Class of Operation: aR

Rating:

Amps: 250~800A

Volts:250Vdc

Interrupting Rating: 50kA@250Vdc

Standards/Approvals for Reference:

Refer to GB/T13539/IEC60269/UL248; TUV、UL、CE; ?RoHS compliant.

Features & Benefits::Low arc voltage, low permissible current (permissible energy), low watts loss, high interrupting capacity, apply to short circuit and backup protection of semiconductor equipment (devices) and complete sets of

Cross-section: 51x51mm

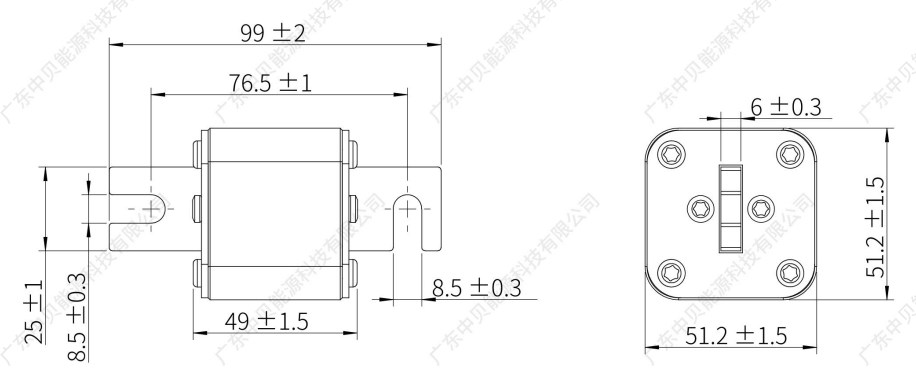

Demensions

Catalogue Numbers
