Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard

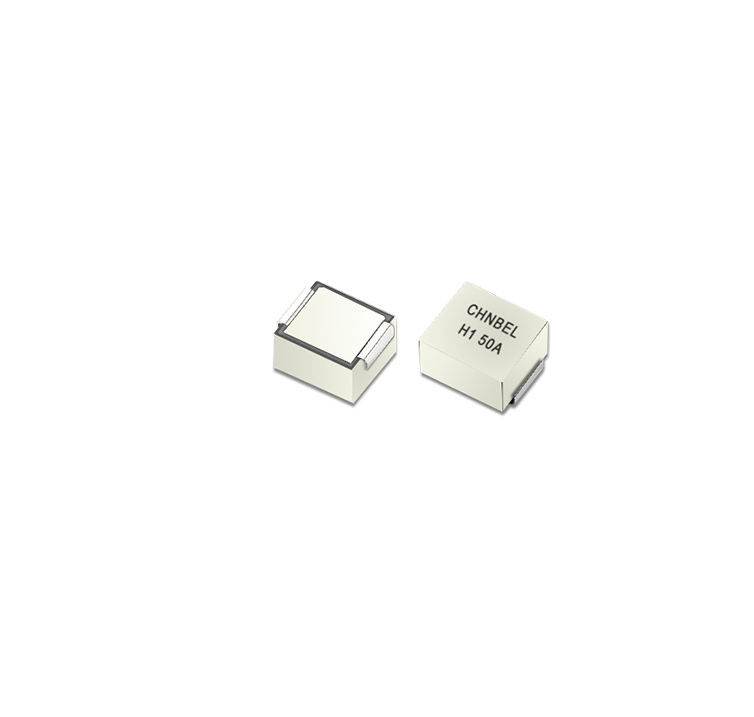

HVH1 4.0x5.8x6.0mm 50-100A 75Vdc 1000A FAST ACTING
UL248-1
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard

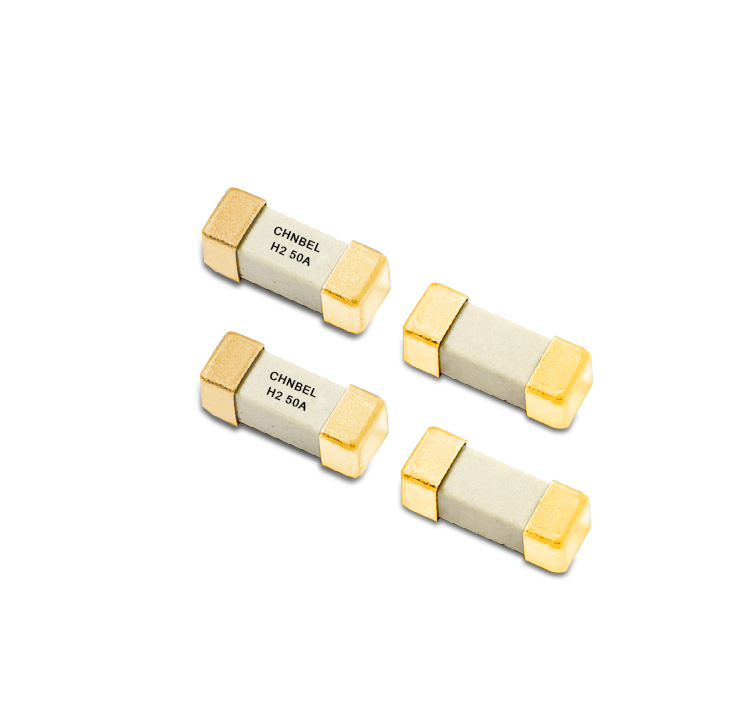

HVH2 12.4x4.5x4.5mm 50-100A 250Vac 300A FAST ACTING
UL248-1
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard

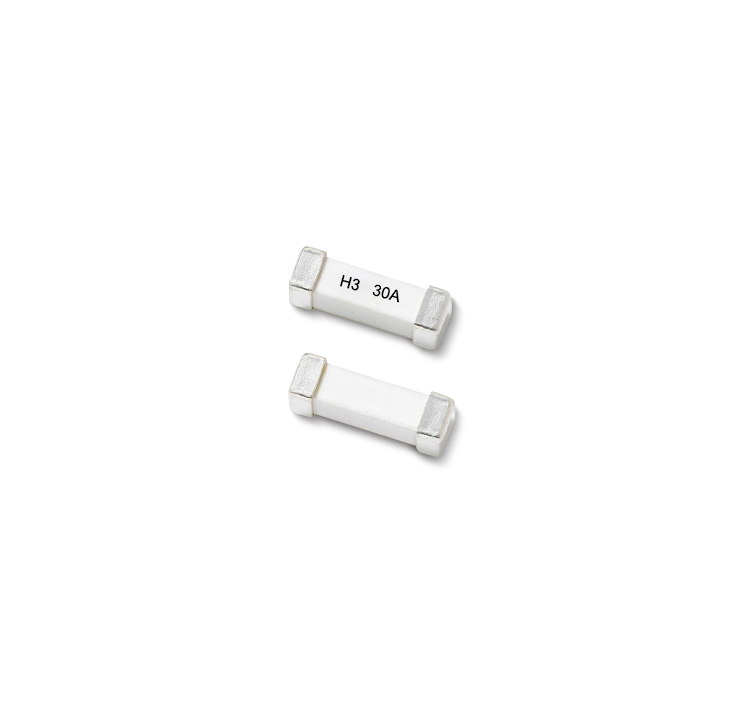

HVH3 10x3.2x3.2mm 30-60A 250V(MAX) 200A FAST ACTING
UL248-1
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard

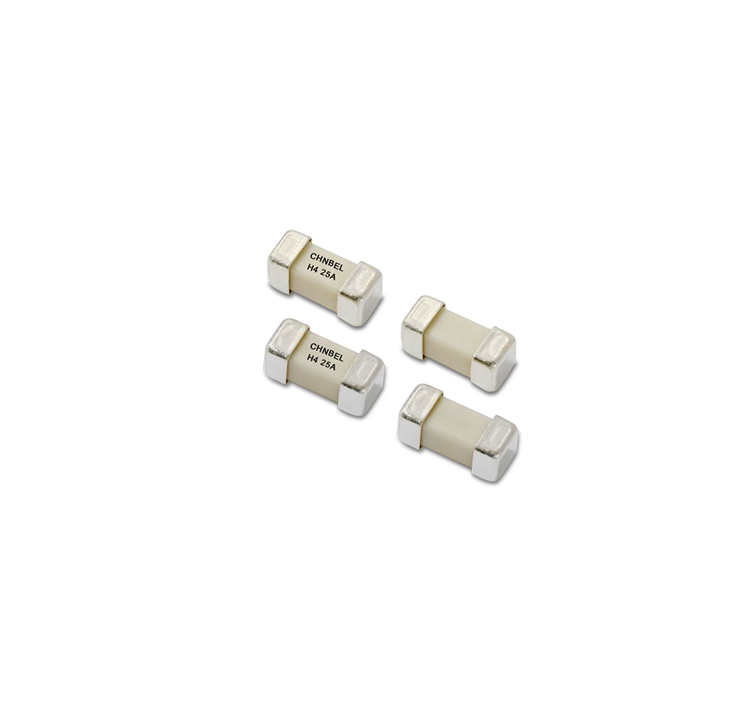

HVH4 6.1x2.6x2.6mm 25-40A 250Vac/75Vdc 400A FAST ACTING
UL248-1
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard

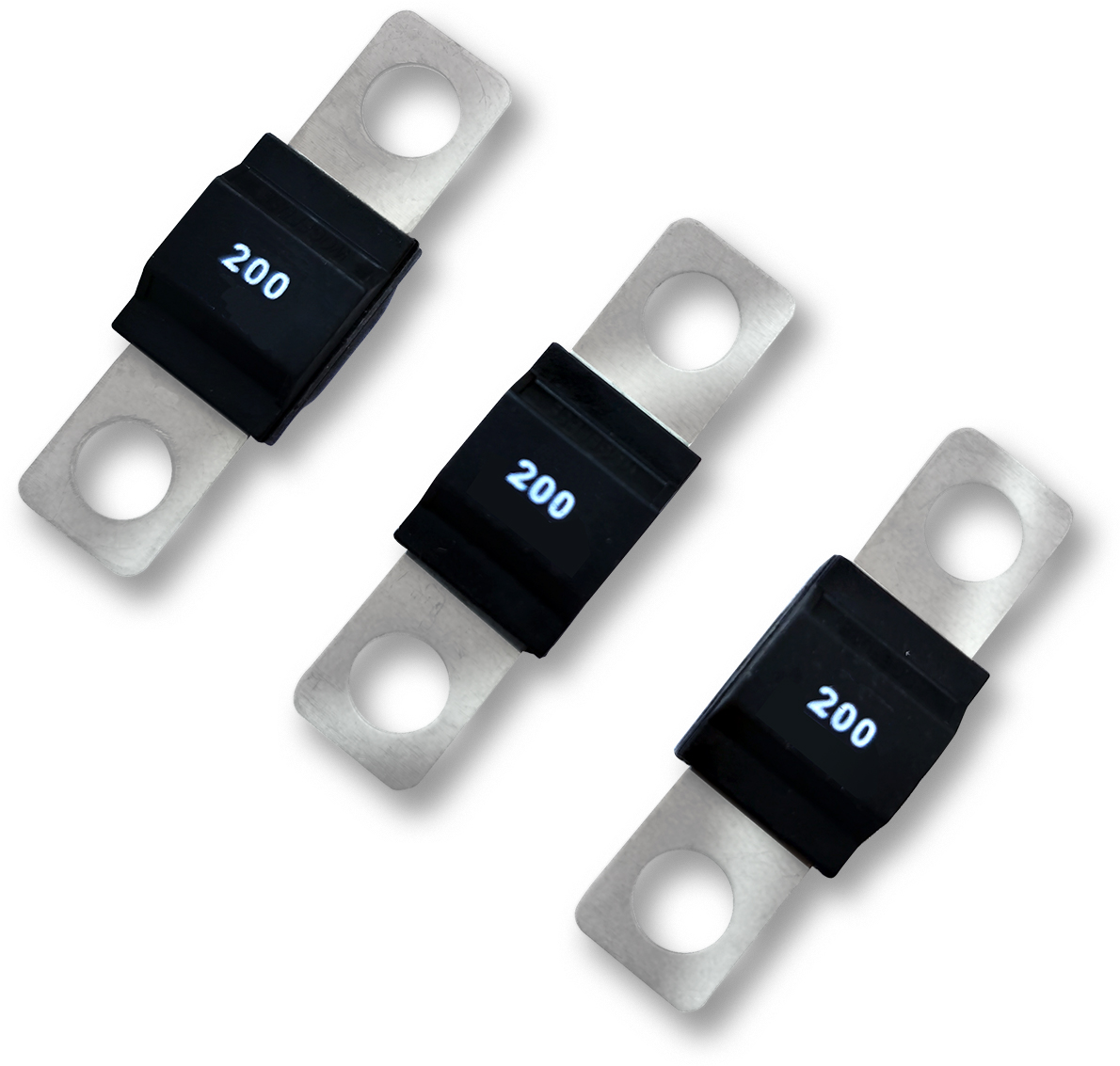

MID.01R 12 x 41mm 20-200A 58Vdc 1000A FAST ACTING
ISO 8820
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard

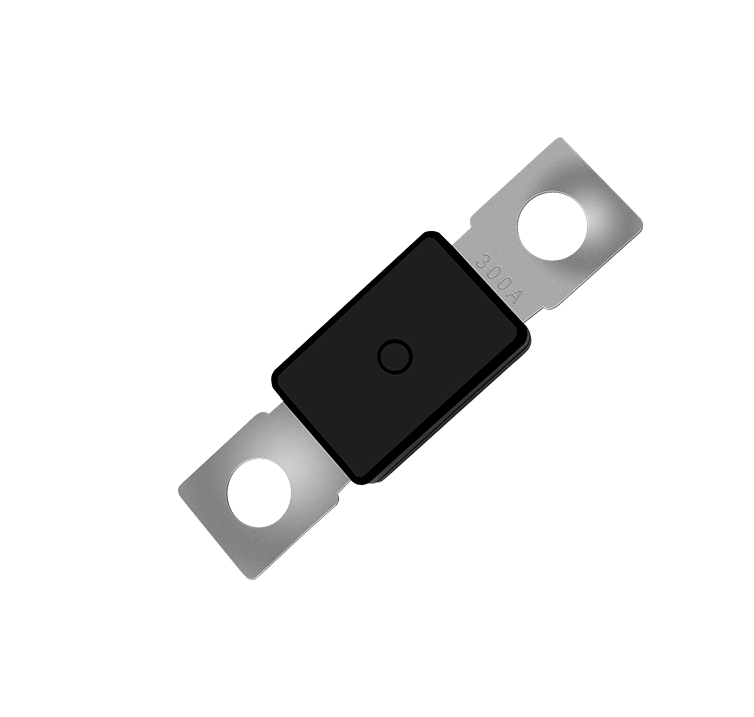

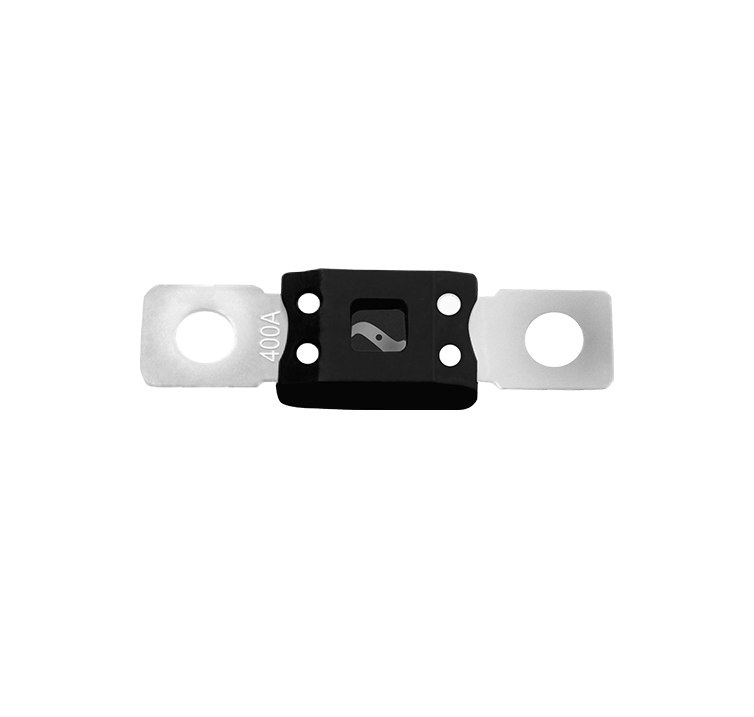

MIG.02R 16.2 x 68.8mm 40-500A 72Vdc（max） 1000A Fast Acting
ISO 8820
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard
MIG.03R 22.5 x 80.0mm 40-500A 125Vdc（max） 1000A Fast acting
ISO 8820
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard

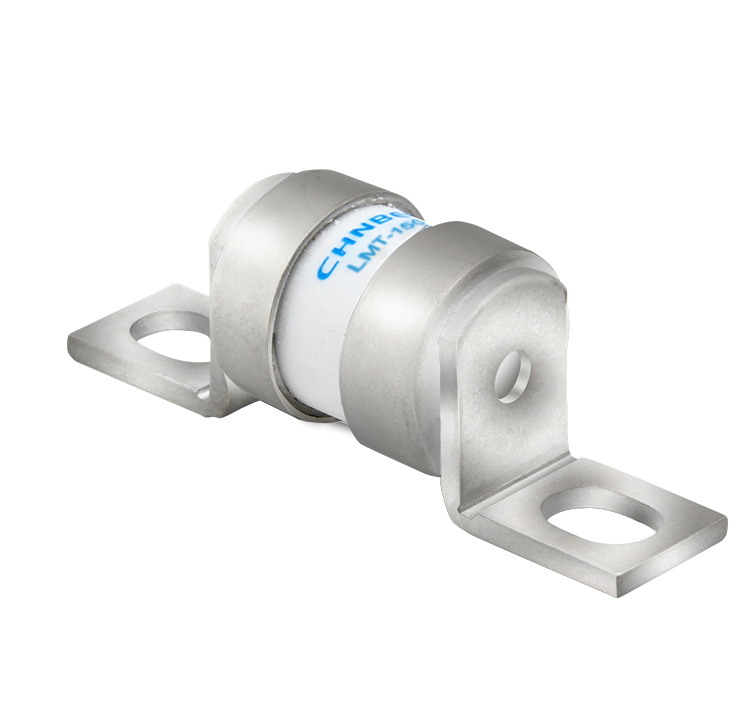

LMT-150-200 17.7 x 55.5mm 200A 150Vdc 20kA FAST ACTING
ISO 8820
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard

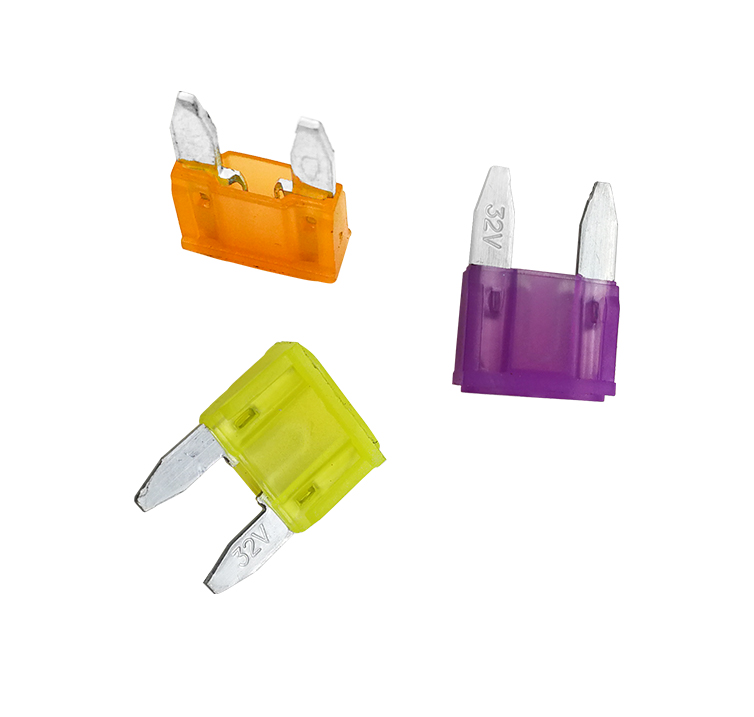

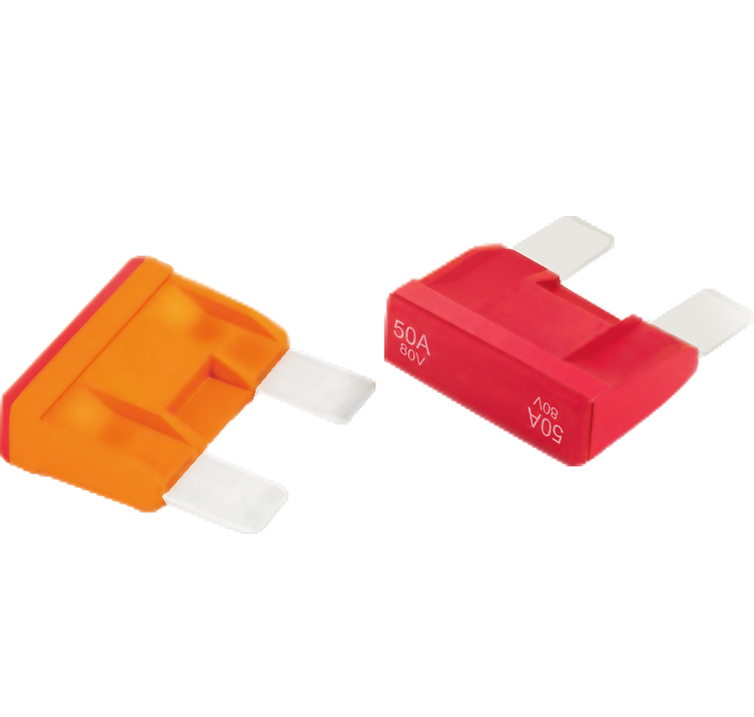

CHMD.01P 小號（11x16.3mm） 1-40A 58Vdc 1000A FAST ACTING
ISO 8820
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard
CHMD.02P 中號（19x18.5mm） 1-40A 58Vdc 1000A FAST ACTING
ISO 8820
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard
CHMD.02N 中號（19x19.5mm） 1-40A 80Vdc 1000A FAST ACTING
ISO 8820
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Standard
CHMD.03P 大號（29x34mm） 20-100A 80Vdc 1000A FAST ACTING
ISO 8820
分類:
叉拴式、插件式、貼片式
電壓：250Vdc Max
電流：10A-500A
應用：
5G通信；鋰電池；分布式儲能；低速出行；轉換器；逆變器；DC電源

規格選型請參考以下表格：
