Class of Operation: aR
Rating:
Amps: 1000~1800A
Volts: 1250Vac/1000Vdc
Interrupting Rating: 150kA@1250Vac/1000Vdc(L/R=6ms)
Standards/Approvals for Reference:
2IEC 60269/GB 13539 2CE, TUV 2RoHS compliant
Description: A range of square body high speed fuse link semiconductor protection.
Cross-section: 103x103mm(size 4)

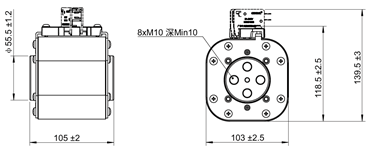

Dimensions(mm)
Catalogue Numbers
Items | Catalogue Numbers | Electrical Characteristics | Bolt Size | Installation torque （N.m） | |||
Rated Current | I2t (A2Sec) | Watts Loss | |||||
Pre-arc | Clearing at 1000V | ||||||
1 | *ESH7069 | 1000 | 690078 | 2829318 | 148 | M10 | 24.0±13.0 |
2 | *ESH7070 | 1100 | 786258 | 3223658 | 168 | M10 | 24.0±13.0 |
3 | *ESH7071 | 1250 | 871200 | 3571920 | 190 | M10 | 24.0±13.0 |
4 | *ESH7072 | 1400 | 1254528 | 5143565 | 206 | M10 | 24.0±13.0 |
5 | ESH7073 | 1500 | 1517979 | 6375511 | 212 | M10 | 24.0±13.0 |
6 | ESH7074 | 1600 | 1833996 | 7702781 | 217 | M10 | 24.0±13.0 |
7 | ESH7075 | 1700 | 2240421 | 9409769 | 226 | M10 | 24.0±13.0 |
8 | *ESH7076 | 1800 | 2687489 | 11556204 | 232 | M10 | 24.0±13.0 |
